Battery type: plastic frame polymer battery

Battery size: (T)22.5mm*(W)38mm*(L)55mm

Rated voltage: 7.4V

Rated capacity: 1800mAh

Work rate: 13.32Wh

Product parameter Product features Application field

POS machine smart battery parameter data
model	HZT103450PL-2S1P
Battery Type	Plastic frame polymer battery
Battery size	(T)22.5mm(W)38mm(L)55mm
Rated voltage	7.4V
Rated Capacity	1800mAh
power	13.32Wh
Cycle life	After 500 times of continuous charging and discharging, the battery capacity is not less than 80%.
Discharge cut-off voltage	4.80V±0.025V
Charging cut-off voltage	8.40V±0.025V
Standard discharge current	0.2C
Standard charging current	0.2C
Maximum continuous discharge current	1C
Maximum charging current	1C
Operating temperature	Charge 0~45℃, discharge -20~60℃
Storage temperature	Temperature -20~60℃, humidity 60±25%
Certification	Passed ISO9001 quality system certification, UL, UN, CE, RoHS, REACH and other certifications.
Terminal	Golden finger
Warranty	December

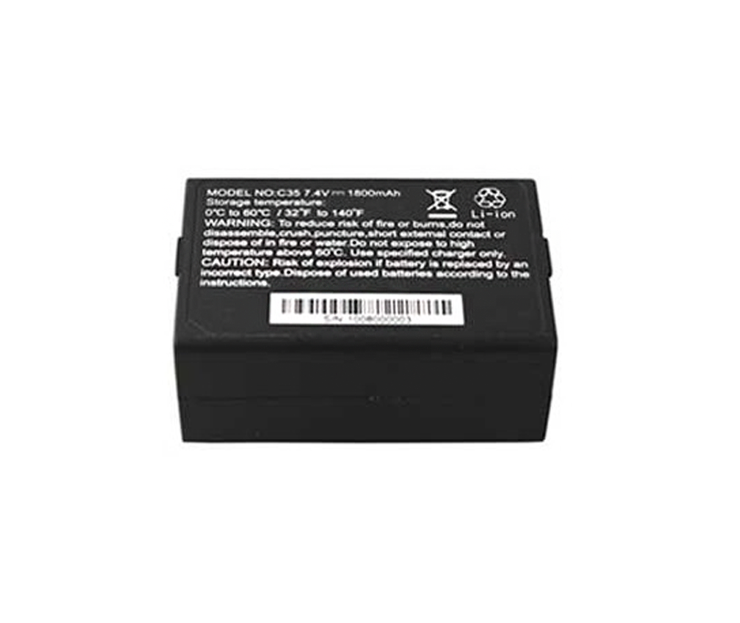

HZT103450PL-2S1P

HZT103450PL-2S1P

HZT103450PL-2S1P

HZT103450PL-2S1P

Product Features:
1. Customized size: model and capacity are available
2. Quality assurance: UL1642 testing standards are adopted, and the products have passed 100% material testing and equipment testing.
3. Stable performance: Long cycle life: After 500 times of continuous charging and discharging, the battery capacity is not less than 80% of the rated capacity.
4. High safety: The built-in circuit protection board has the characteristics of no fire or explosion under short circuit, overcharge, over discharge, impact, vibration, acupuncture, high temperature and other conditions. Our 18650 batteries all have explosion-proof valves, and the polymer battery cells all use colloidal electricity, which will only bulge at most and will not explode. In addition, our company has a strict quality inspection process to ensure product safety and quality.
